Win10 to Win10 with a Citrix VDA

Intro – my relationship with Windows 10

The company I’m working for, Die Mobiliar, started early with Windows 10, we rolled out in spring 2016 Windows 10 to all our physical devices and also to our virtual Desktops. We have two different kind of VDIs, pooled Win10 Desktops provided by Citrix PVS and also classical installed dedicated VDIs. Both with Citrix XenDesktop 7.x.

To be in the role as early-adopter with such a new operating systems is interesting but also nerve-racking on some days… Especially when you add Citrix XenDesktop on top to Windows 10 and then also special requirements like physical and virtual Smart Cards.
I talked about this adventure on E2EVC in Rome: The stony road of a VDI migration from Win7 to Win10

Next chapter

Now our story goes into the next round, we installed Windows 10 last year with the 1511 Release and we want to go now to the anniversary update (1607). For our pooled desktops it’s no question, fresh install on the new build. But an fresh install of the dedicated desktops where users have installed their own stuff will get me into big troubles … it’s really not an option!

I was curious who is in the same boat, so I created this poll:


36% are doing fresh install of dedicated desktops? Wow … BOFH? 🙂

I tell you now 2 secrets:

  • It’s not possible to update Windows 10 from one version to the other when a Citrix Virtual Desktop Agent (VDA) is installed!
  • Uninstall of Citrix VDA fails most of the times!

    Good News:
    Citrix knows that uninstall of the VDA is a problem, for that reason there exists the
    VDACleanupUtility.exe (https://support.citrix.com/article/CTX209255)
    Bad News: VDACleanupUtility.exe (VCU) should run as a User, need a reboot and login with the same user, what means it’s not in a easy way to automate that.

With some hints of the CTP colleague Stephane Thirion and my collegues at “Die Mobiliar” I was able to create this guide to automate the Windows 10 Update with an automated removal of the VDA.

Task Sequence for SCCM

We are doing this with Microsoft System Center but with the following infos it’s also possible to fulfil this challenge with other ESDs.

Upgrade Steps – Overview
The Citrix VDI specific things highlighted in yellow, in this guide I’ll focus on that. We are using one task sequence to update all our Windows 10 installation, thats the reason we need to made a decision if the installation is a VDI or not.

After the OS upgrade we just install the VDA again with our existing software package.

Because the Windows upgrade kills the Citrix receiver we also re-install the receiver at the end.

The really hard part is the proper automated removal from the VDA, and thats where I go a bit into the deep in this article.

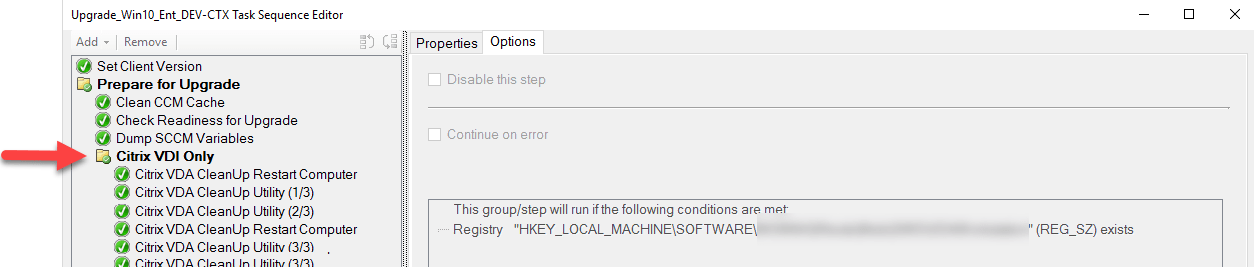

VDI or not – thats the question
Because we will use one TaskSequence for Win10 with and whiteout Citrix VDA we just check if the VDA is installed, we are doing that by query the Key which has been written by the Software package for VDA
A reboot to start is always smart

Sometimes the VDACleanupUtility ask for a reboot, it’s good to start with a reboot before any other steps are done.

first step of the VDA removal

The VDACleanupUtility should be started in silent mode and with a suppressed reboot:

cmd /c VDACleanupUtility.exe /silent /noreboot

The VDACleanupUtility.exe is the only thing in the Package you see on the screenshot.

Remove an action which would be done after the suppressed reboot in order of the VCU

cmd.exe /c REG DELETE HKLM\Software\Microsoft
\Windows\CurrentVersion
\RunOnce /v CitrixVdaCleanup /f

 Now you can reboot

Start the VCU again

this time with the switch silent and reboot – reboot doesn’t mean that it will do a reboot, it’s just the info for VCU that it’s now in phase after the reboot

cmd /c VDACleanupUtility.exe /silent /reboot

 Now do all the Windows Upgrade steps you want to do,
here you also need to think about drivers or in virtualized environments XenTools, VMwareTools, etc.

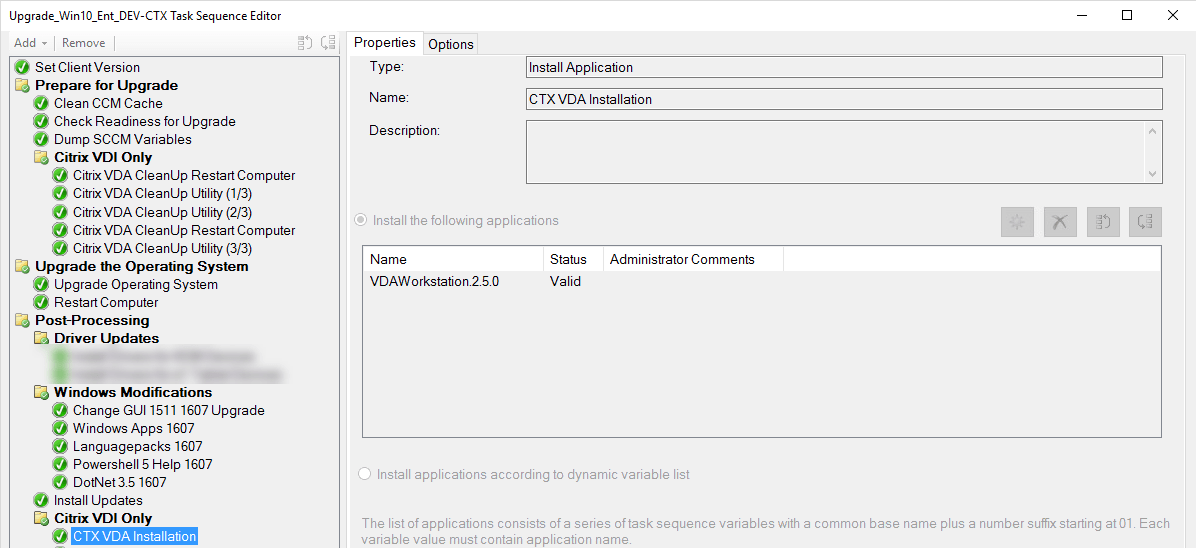

As a next Step install the VDA again
Re-install the Citrix Receiver

Update of Win10 will destroy your Citrix Receiver installation, for this reason install it again at the end

I want to thank here to Stephane Thirion  (https://www.archy.net) for the hints about automate the uninstall of the VDA. Also thanks to my colleagues Stefan Moser and Thomas Hahnel at Die Mobiliar with more Knowhow about SCCM Task Sequences and patience on testing.
